AIS- Dual Wall Heat Shrink Tubing
Applications
The outer layer is made of radiation cross-linked polyolefin, and the inner layer is coated with hot melt adhesive. After heating, the outer protective layer is formed, and the inner hot melt adhesive forms an adhesive layer which can protect against water and fix the object firmly, and has good adhesion to rubber, PVC, PE, and aluminum. This tubing can be used in various fields of repairing wires and waterproof requirements.
Approvals / Specifications
UL224 File no. E255532, 125℃ VW-1 600V
Operating Temperature Range
- Continuous operating temperature: -45˚C~110˚C
- Minimum shrink temperature: 80˚C
- Full recovery temperature: Above 110˚C
- Temperature withstands of outer tube: 125˚C
Color
Standard color: black (Other colors, special sizes, and cut pieces are available on request.)
Characteristics
- Shrink ratio: 3:1 / 4:1
- Excellent waterproof performance
- Flexible, high flame retardant
- Excellent physical, chemical and electrical performance
- EVA and high melting temperature polyamide (PA) hot melt adhesive are selectable based on your applications
- Compliance with RoHS and REACH environmental regulations
Specification
| 產品型號 | 尺寸(mm) | 收縮前 (mm) | 收縮後 (mm) | 標準長度(Meter) | |||
|---|---|---|---|---|---|---|---|
| 內徑(D) | 壁厚(W) | 內徑 (最大)(d) | 壁厚 (最小)(w) | ||||
| G5-0008 | 0.8 | 1.0±0.2 | 0.15±0.05 | 0.6 | 0.25 | 200 | |
| G5-0010 | 1.0 | 1.5±0.3 | 0.20±0.05 | 0.7 | 0.33 | 200 | |
| G5-0015 | 1.5 | 2.0±0.3 | 0.20±0.05 | 0.8 | 0.34 | 200 | |
| G5-0020 | 2.0 | 2.5±0.3 | 0.20±0.05 | 1.1 | 0.34 | 200 | |
Technical Data

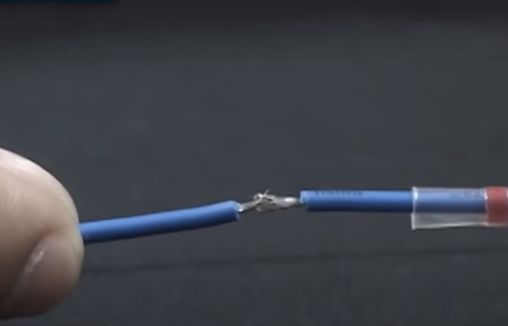

Video
FAQ
問題敘述，如: Medical Tubing
述區，如: Adhesive-lined heat-shrink tubing covers cable and wire, and when heat is applied, it shrinks the tubing and, on the other side, melts the adhesive to create tightly sealed bundles. This product is great for protecting cable joints and terminations. The wall thickness is classified into double-walled heat-shrinkable tubing, medium-walled heat-shrinkable tubing, and thick-walled heat-shrinkable tubing.
問題敘述，如: Medical Tubing
述區，如: Adhesive-lined heat-shrink tubing covers cable and wire, and when heat is applied, it shrinks the tubing and, on the other side, melts the adhesive to create tightly sealed bundles. This product is great for protecting cable joints and terminations. The wall thickness is classified into double-walled heat-shrinkable tubing, medium-walled heat-shrinkable tubing, and thick-walled heat-shrinkable tubing.
